1. Stop and start the pump automatically
2. Stop the pump in the case of water shortage
3. After power cut off, restart the pump automatically when the power on.
4. Forced Start
5. Automatically restart after water shortage, the restart interval time is 1 minute, 30 minutes, 1 hour recycle
6. Anti-stick protection, the controller will start the pump automatically by 1time in 48 hours to prevent the pump get stuck in the condition of long time no use.
7. Built-in pressure sensor and digital display ,for real-time monitoring of system pressure values
8. Features a pressure sensor fault warning function
9. Features an alarm function to detect continuous operation of the water pump exceeding 6 hours without shutdown
10. Features a warning function for detecting frequent pump start-stop cycles
11. Can be installed vertically or horizontall,Unrestricted by spatial constraints
12. Built-in three working modes
a. Manual mode: Manually set starting pressure, 0.5-6.0bar adjustable, wide range of adjustment, easy to operate
b. Automatic mode, the controller can automatically adjust the starting pressure value based on the pipeline pressure. It monitors the pipeline pressure in real time- -the higher the pipeline pressure, the higher the starting pressure, and the lower the pipeline pressure, the lower the starting pressure. No manual operation is required, preventing pump startup failures caused by a mismatch between the preset starting pressure and the pump head. It is compatible with any pump within a head range of 10-98 meters, rated voltage, current, and power. It is particularly suitable for systems with multiple pressure overlaps (such as tap water or other booster pump pressures). Compared to traditional pressure controllers, it significantly reduces the occurrence of failures, thereby lowering after-sales costs and offering greater intelligence.
c. Pressure mode: The stopping pressure can be set from 1.0-9 .8bar. In this mode, the pump stops based on both pressure and flow, ensuring more reliable shutdown.

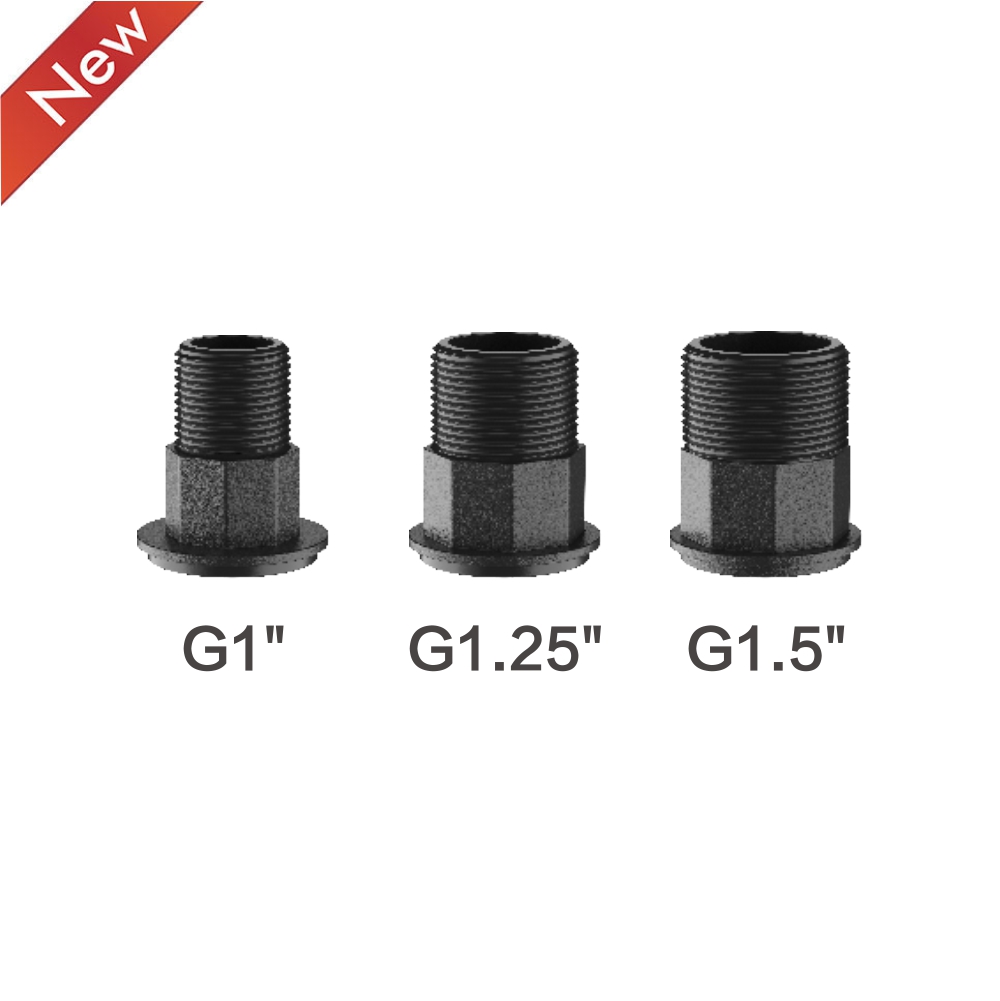

13. Hydraulics connection: including four types of male: G1", G1.25", G1.5", and G2"
14. Can be configured according to user requirements
1. Color
2. Power cable length
